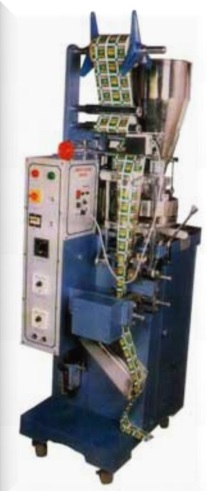

Automatic FFS – Pouch Packing Machine

Product Description

• Automatic Form, Fill and Seal machine with unique online telescopic cup adjustment system to pack various Granules and Powders like Sugar, Salt, Tea, Spices, Gutkha, Ayurvedic Powders, Milk  Powder,  Detergent  Powder,  Mouth  Freshner,  Tobacco,  Pharmaceutical  Tablets,  O.R.S. Powder, etc. in laminated pouches.

• Salient Features:-
• • Very easy to operate
•  • All contact parts are made of stainless steel
•  • Compact design with saster wheel for easy mobility
•  • Variable machine speed
•  • Photocell control system can automatically adjust & correct “Eye Mark” within ± 1.5mm.
• • Unique online telescopic system for easy weight adjustment.

• Packing Size:-
• Film Length: 40mm to 120 mm or 100mm to 300mm
• Film Width: 40mm to 160 mm or 40mm to 220mm
• Material Packing Range:-
• 0.5 gm to 30 gm, 30 gm to 50 gm, 50 gm to 100 gm, 100 gm to 200 gm , 200 gm to 500 gm. (Depending on the specific gravity of material)
• Motor : 1/4 HP or 1/2 HP:220 V/Single phase 50-60 Hz Heater: 1) Three sides sealing : 150 W x 2 pcs.            2) Four sides sealing : 300 W x 4 pcs            3) Centre sealing : 300 W x 2 pcs
• Machine Dimensions:-
• 750 mm x 560 mm x 1750 mm (L x W x H)

• Operating Speed:-
• 30-100 Pouch/Min (Depending upon the volume of free flow material)
• Packing Material:-
• All types of Heat sealable laminated films such as: Polyester/Poly: Polyester/Foil/Poly: Foil/Poly Metalized Polyester/Poly and similar laminates.
• Optional Attachments:-
• • Batch Coding Device, • Static Charge Eliminator • Nitrogen Flushing Arrangement.

• Shipping Specifications:
• 1000 mm x 910 mm x 1550 mm (L x W x H) Gross Wt. 700 Kgs.
